Precision Heavy Gauge Automatic Steel Sheet Slitting Line Of Jinye Equipment

  • 1
  • 2

Brand Name : Jinye

Model Number : JY(1-8) x 1600

Place of Origin : Wuxi, China

MOQ : 1Set

Payment Terms : L/C, T/T

Supply Ability : 10Sets per year

Delivery Time : 120 -180days

Packaging Details : Film wrapped, 5 x 40HC

Material : Hot rolled, cold rolled, GI coil sheet

Coil width : 600-1600

Coil thickness : 1-8

Coil weight : 15-30T

Coil ID, OD : 508/610mm, 2000mm

Number of slitting : 8mm x 6strips

Slitting speed : 0-60-120m/min

Fast tooling : double slitters, turret

Land area : 33m x 10m

Total power : 440KW

Recoil mandrel : 610mm

Slit tolerance : +/-0.20mm

Contact Now

Precision Heavy Gauge Sheet Steel Slitting Line of Jinye Equipment

Precision Steel Slitting Line hot sale equipment, heavy gauge slitting line is equipment of high precision automation, either double slitters(twin or one big & one small), or fast tooling change turret are optional configuration, fast tooling is offline without bothering online slitting work, good to improve slitting line production.

Heavy gauge Slitting lines:

6 x 1600 -1800mm 120mpm steel coil precision slitting line

8 x 1600 -2000mm 100mpm precision steel slitting lines

10 x 1600 -2000mm 60mpm precision slitting lines

12 x 1600 -2000mm 40mpm slitting line machines

The slitting tools are different from small gauge slitting lines, and the change process of the tools requires more automatic to reduce human load.

Double heads slitting lines cases:

Steel Slitting Lines Make year Market
3x1250 double heads 2019 Philippines
4x1850 double heads 2014 South Africa
3 x 1600 double slitters 2018 Indonesia
3/6 x 1600 double slitters 2013 Indonesia
3x2000 double slitting heads 2019 Vietnam
6x1700 double slitting heads 2021 Russia
6x2000 twin slitters 2018 India
8x2000 twin slitters 2019 Algeria
8x2000 fast tooling change 2022 Russia
4x1650 fast tooling change 2022 Malaysia
3x1600 twin slitters 2020 Domestic
4 x1600 twin slitters 2021 Domestic

Composition and Parameters:

No. Composition Parameters
1 Feeding Coil car 15-30T
2 Double mandrel uncoiler Φ508 -610 -760mm, 30T load
3 Pinch feeder and Five Roller Leveler Φ180 mm, 45KW
4 Hydraulic shear 8x 1600
5 Pit accumulator 1 4000mm length
6 side guide and Pres Roller 300-1600mm wide
7

slitting machine

(twin heads fast exchange)

 Φ280mm, 160KW +4KW x 3
8 edge scrap winder and Strips tails Press 7.5KW x 2
9 Pit accumulator 2 5000mm length, 5000mm depth
10 Pre-separator, Tensioner, balancing roller

Twice separating, wool felt and rolls tension, Φ320mm deflection roller
11 ReCoiler (with separating discs, pusher) Φ610mm, 200KW, 30T load
12 Coils discharging trolley 30T
13 Hydraulic system Rexroth valves, Yuken pump
14 Electrically control system Parker DC drive, Siemens PLC and touch screen, protection circuits

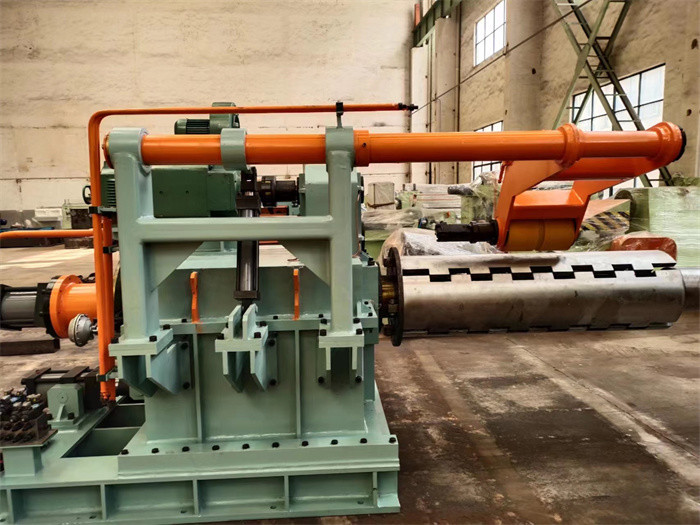

Precision Heavy Gauge Automatic Steel Sheet Slitting Line Of Jinye EquipmentPrecision Heavy Gauge Automatic Steel Sheet Slitting Line Of Jinye Equipment
